Drawer Slides

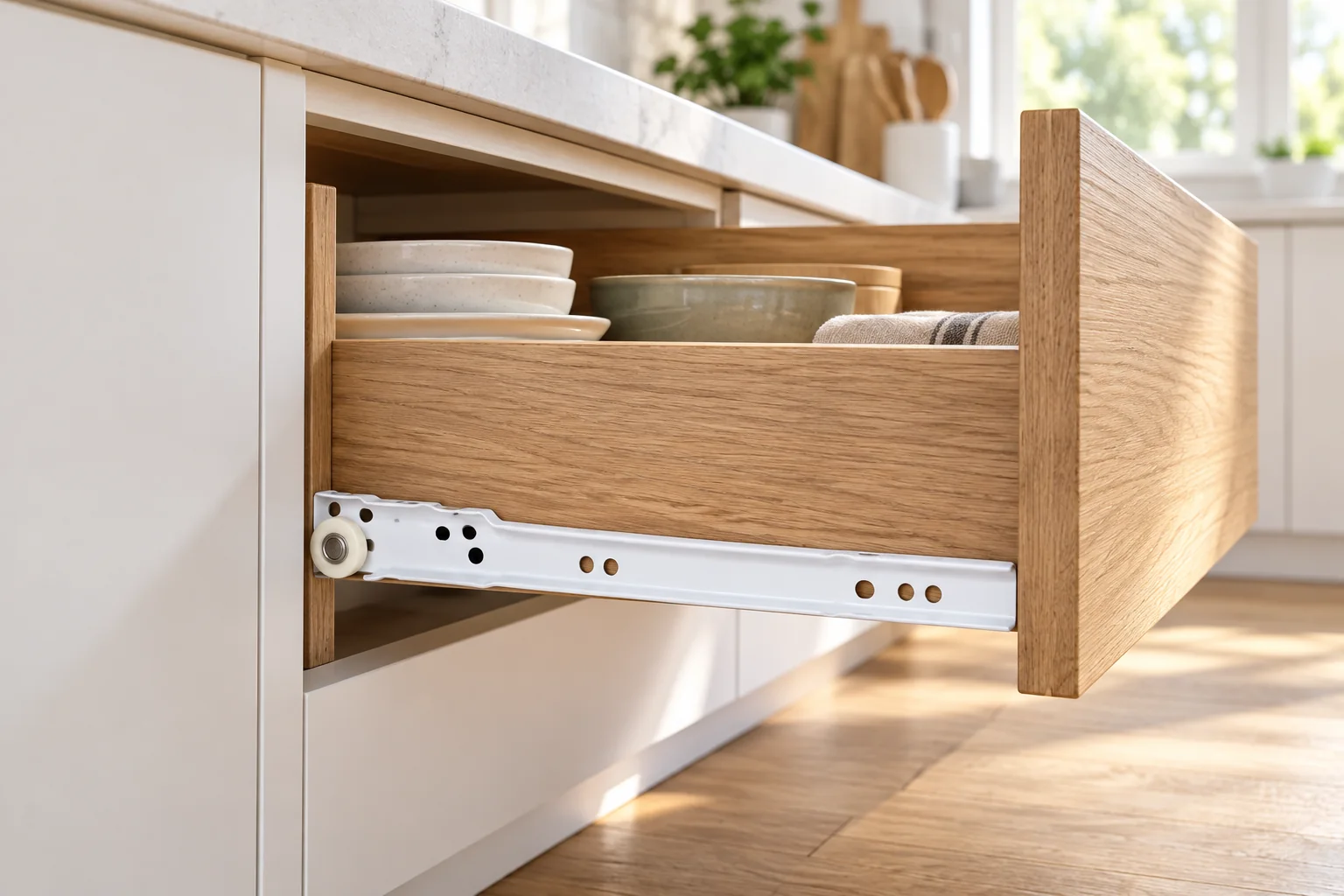

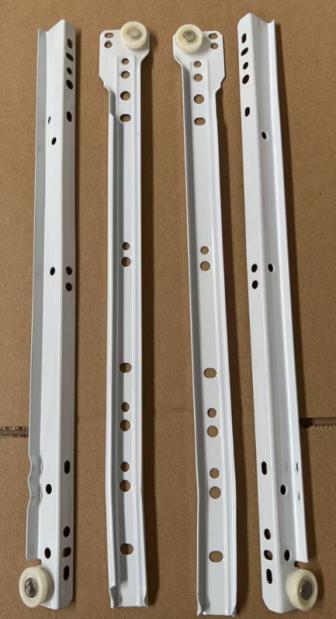

The photographed white roller slides work as matched tracks between a drawer and cabinet to guide movement.

Images may include supplier records, similar-product references or scene illustrations. Confirm appearance, installation and specifications against a sample.

In context

Seen in use.

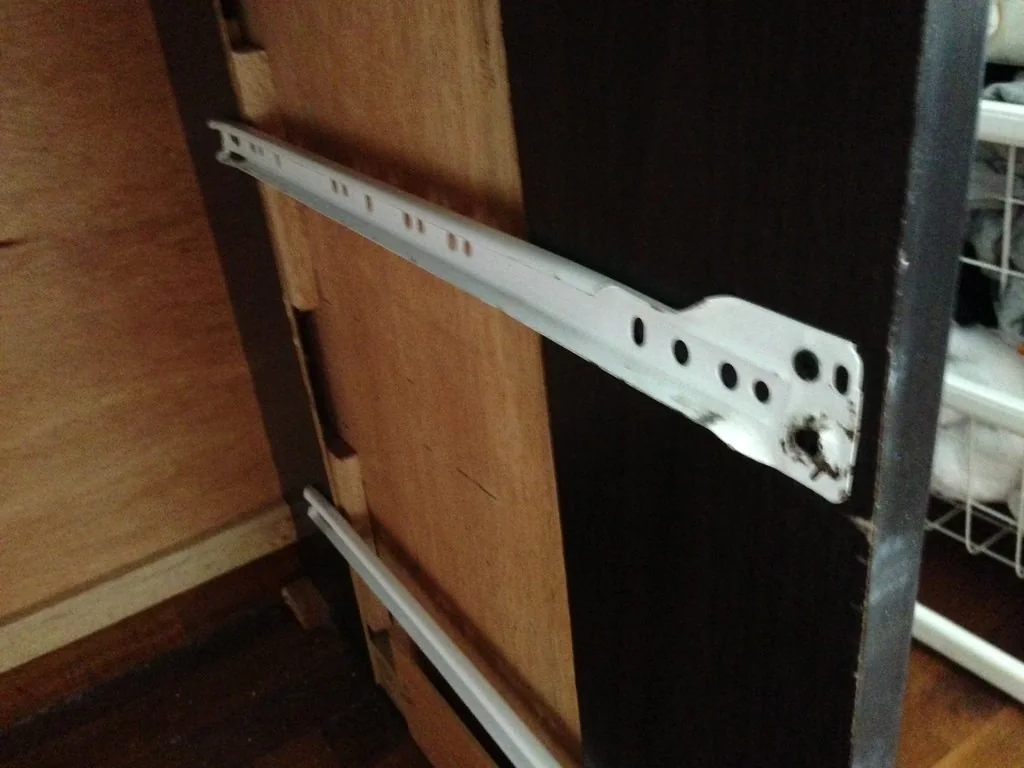

Drawer Slides · White roller rail mounted on a cabinet side — White roller rail mounted on a cabinet side

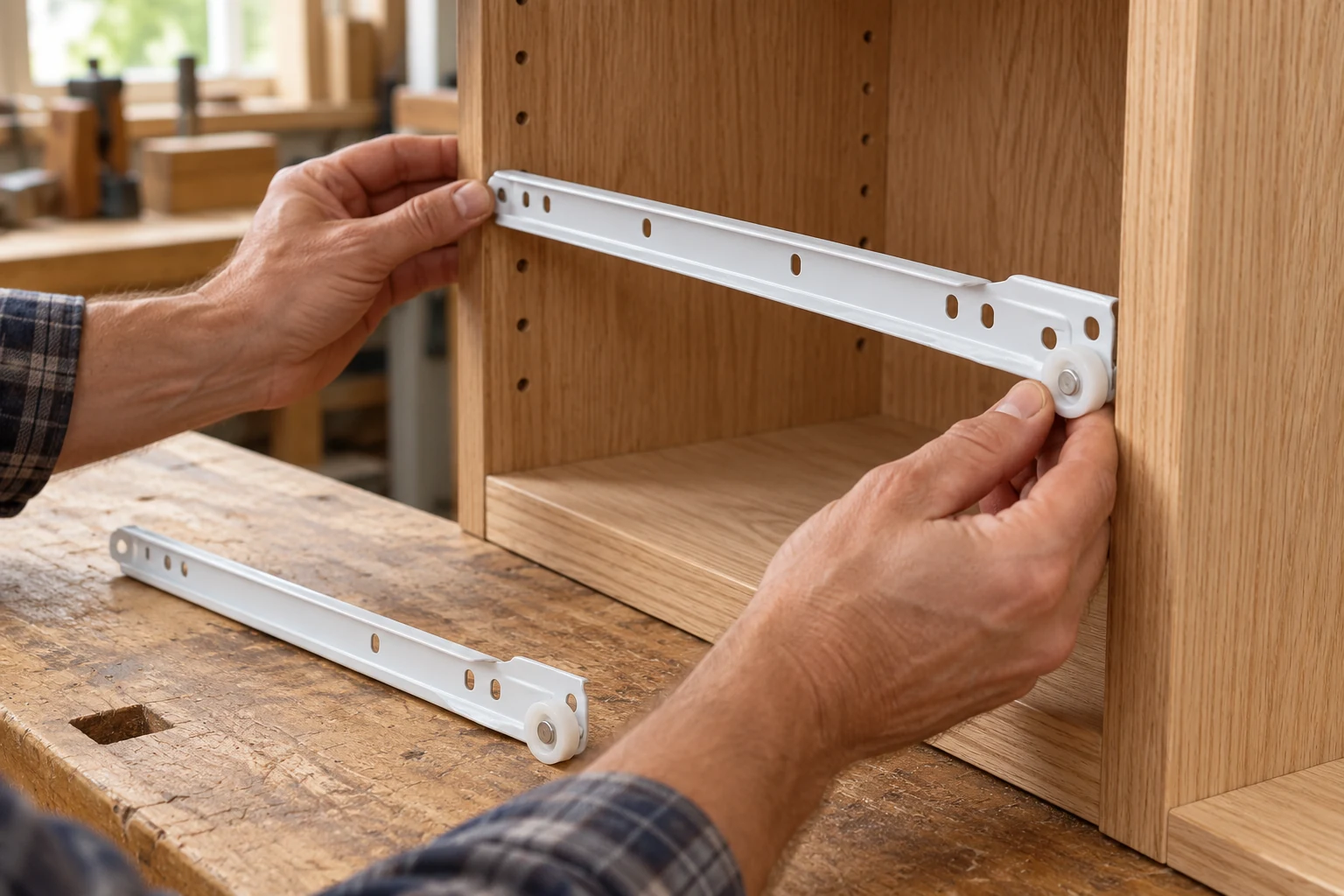

Drawer Slides · Aligning a cabinet-side rail — Aligning a cabinet-side rail

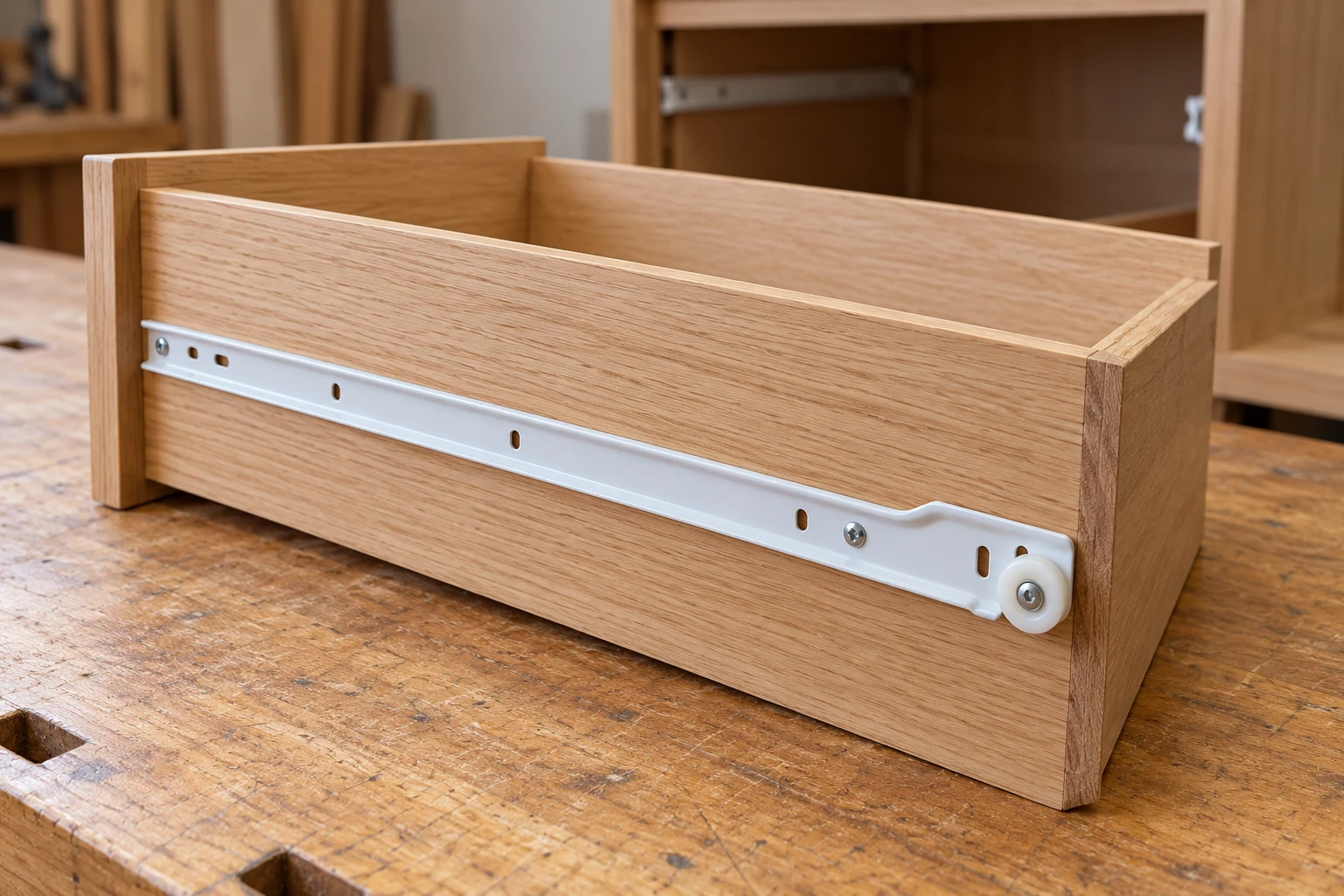

Drawer Slides · Roller rail on a drawer box — Roller rail on a drawer box

Specifications

What to confirm.

The drawer-side and cabinet-side roller tracks must match and have adequate mounting clearance. Confirm depth, track length, load and travel; soft-close or full extension is not evidenced by the photo.

Cabinet HingeCup hinge joining a door to a cabinet.

MirrorPackaging photo only; mirror model unconfirmed.

ScrewsThreaded fastening for panels and hardware.

Image credits

Photo: Kai Hendry · CC BY 2.0
